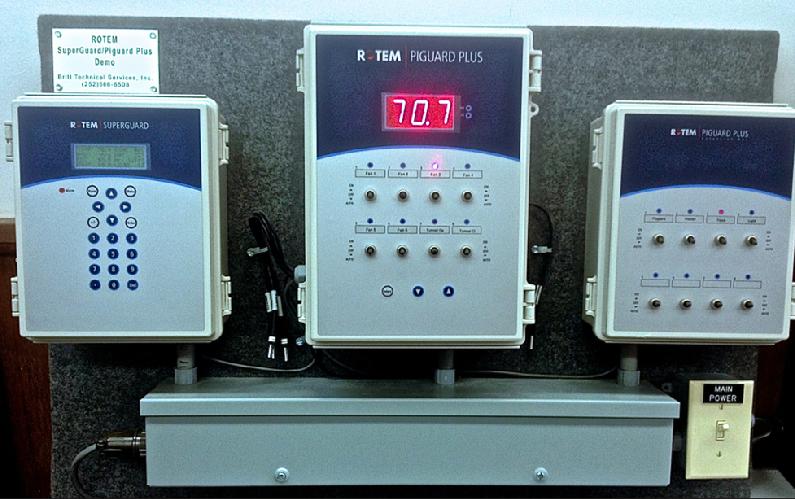

Super Guard-Piguard Plus Server:
|
- The Super Guard provides you maximum capability with minimal complexity in programming and controlling up to 10 Piguard Plus units.
- Super Guard is the ultimate hog house controller. Equipped with an easy programming interface, it provides programmable outputs for all major features and a 4x20 character LCD that provides display feedback on the programming and device status.
- The coordinated cursor, positioning scrollbar, quick access to device, feature, slection, and a large numeric keypad are all easily accessible on the Super Guard.
- The Super Guard communicates with up to ten Piguard Plus units to access history, collect events and alarms for each Piguard Plus and all relevant data up to 100 days. A complete remote communication is built-in with a real time graphics HMI.
- Included in the Super Guard is an alarm center for all Piguard Plus units. In addition, the user-friendly Super Guard features a real time display with a clock, a data plug for quick program transfer, plus a multi-lingual support.
|
|
|
Piguard Plus: Room Controller
|
- Piguard Plus is Rotem's latest advance in environmental controllers specially designed for the pig house industry.
- The user-friendly Piguard Plus has high performance and quick response time.
- Piguard Plus features accurate temperature and humidity sensors, secure transmission of data even in noisy environments and the added convenience of eight output relays as well as four analog outputs. A technologically leader, it satisfies your requiremnets by optimizing control between input & output.
- The Piguard Plus is fully euipped to monitor and fine tune all aspects of the environmental system(s).
- The advanced environmental control unit makes the pig's life more comfortable and gives you peace of mind knowing that the ultimate controller is on guard around the clock.
|
Piguard Plus Features:
- Easy Programming
- Programmable outputs
- Alarm system
- Large display
- Up to 4 temperature sensors
- Up tp 8 heavy duty relays (1HP)
- On/Off/Auto override switches
- Static pressure control (optional)
- 4 Analog output (0-10 volts)
- Variable speed fan output with bypass
- Water, feed, and humidity control
- Automatic calibration of curtains
|
|
